XiaoR Geek DS-X Smart robot car for programming and educational
Description

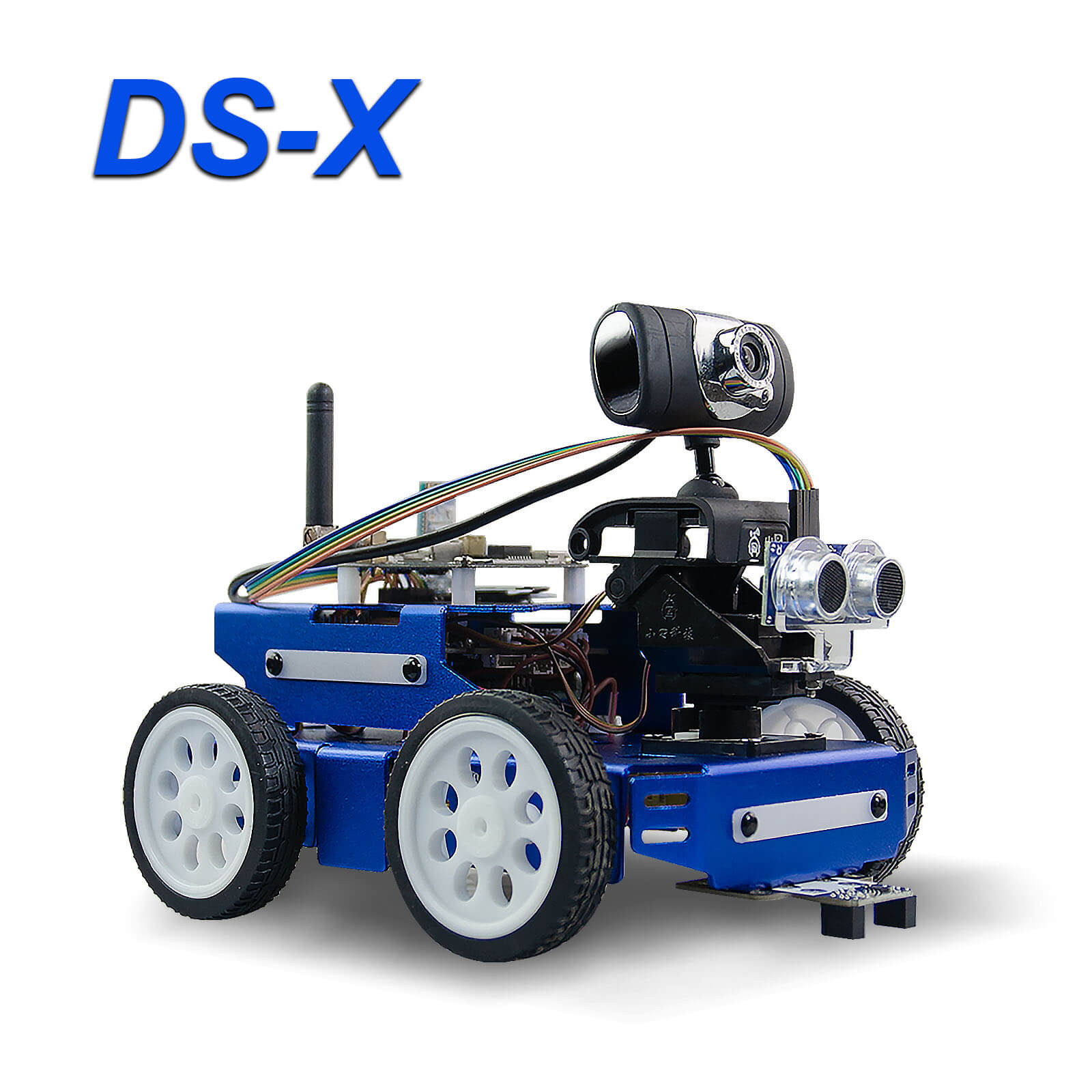

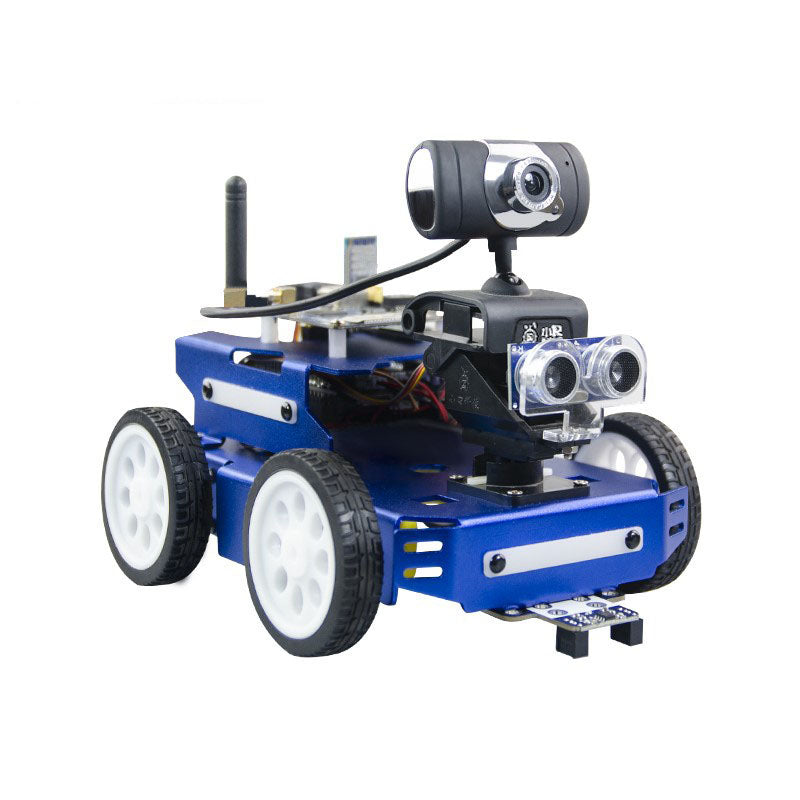

The DS-X robot is an entry-level vehicle-shaped robot with a wheeled structure. The car body is compact and small, which is especially suitable for teaching scenes of indoor desktop. The whole car weighs 1.3kg and can reach a maximum speed of 1.5m/s. It has great advantages in racing competitions, just like a wild horse without the rein. The product is compatible with the commonly used Arduino, STM32, and Raspberry Pi three kinds of maker education hardware platforms. It opens a wealth of secondary development hardware interfaces and software API interfaces. It is compatible with more than 40 common IoT sensors. The programming method is simple and easy to understand. Incidental courses from shallow to deep. It is the first choice for entry-level maker of educational robots .
Parameters
| Compilation language: STM32 / Arduino (C) Raspberry Pi (Python) | Product model: DS-X |
| Power supply voltage: 7.4v | Compilation environment: ArduinoIDE / IAR Python |
| Charging method: DC direct charge | Wireless communication: WiFi/Bluetooth |
| Frequency range: 2.4Ghz | Signal range: 25m effective distance |
| Camera: 300,000 HD camera | Weight: ≈1.5kg |
| Size: 231 * 140 * 158mm | Remote control method: iOS, Android, PC, Web, PS2 handle |
| Implantation: Arduino UNO / STM32 / Raspberry Pi |
Fully-equipped with teaching function

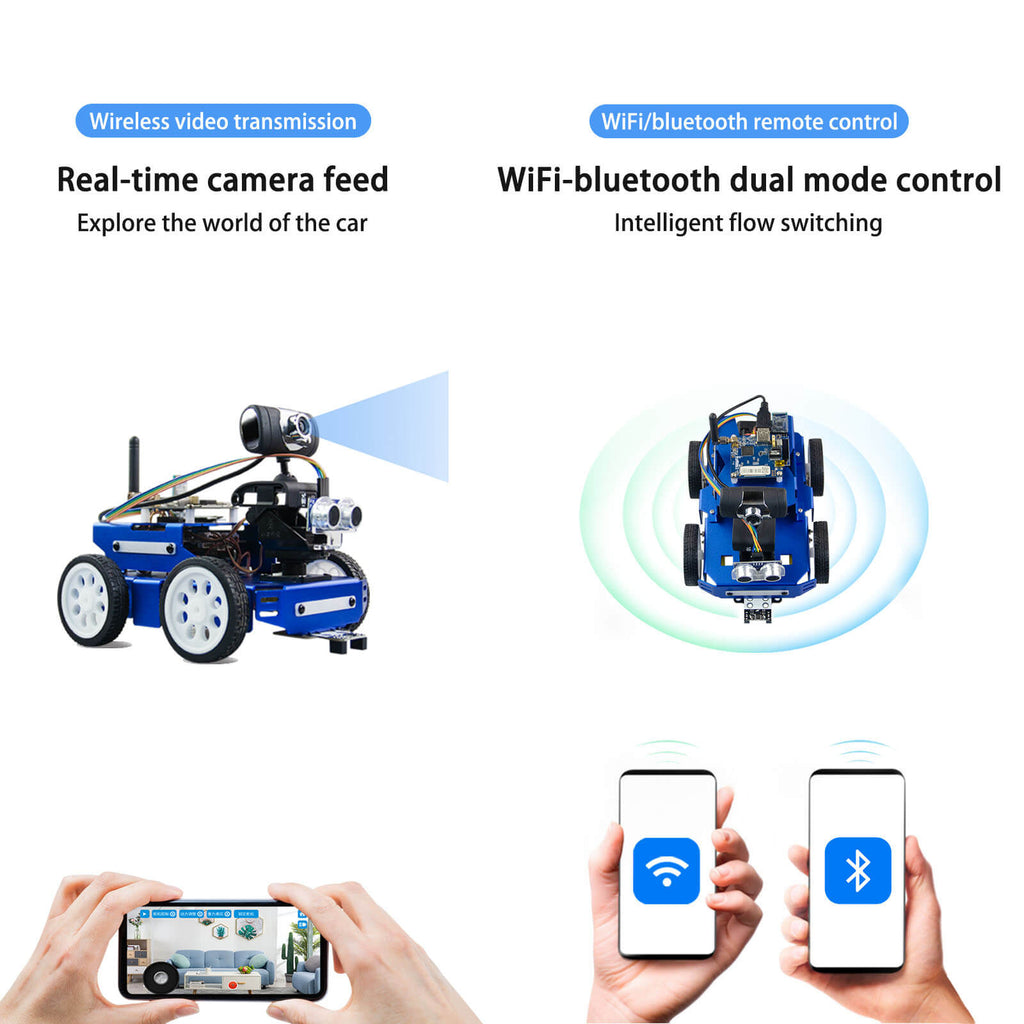

1、 WiFi wireless remote control
2、 WiFi wireless video transmission
3、 Motor control
4、 Servo control

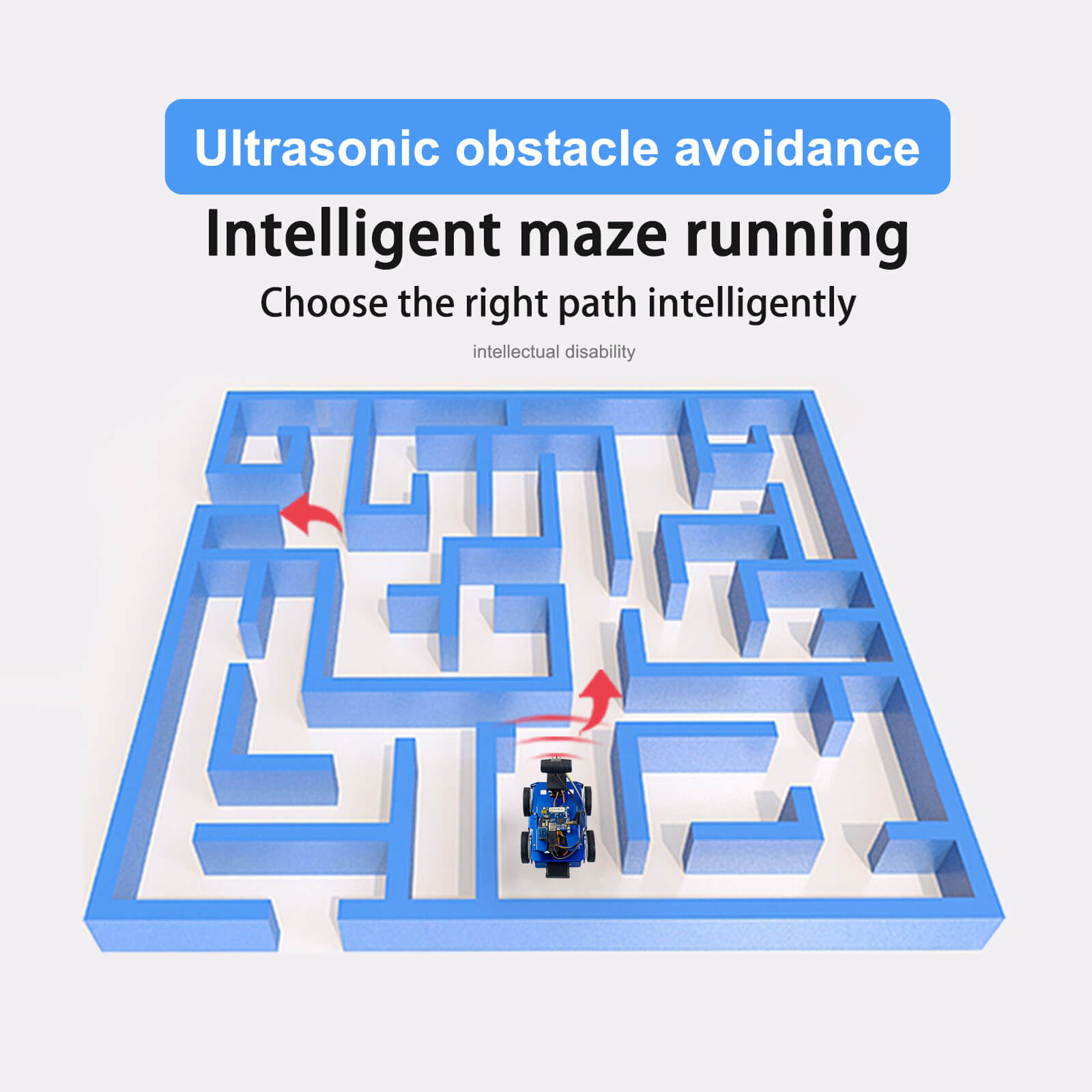

5、Ultrasonic walking the maze
6、Ultrasonic ranging backhaul

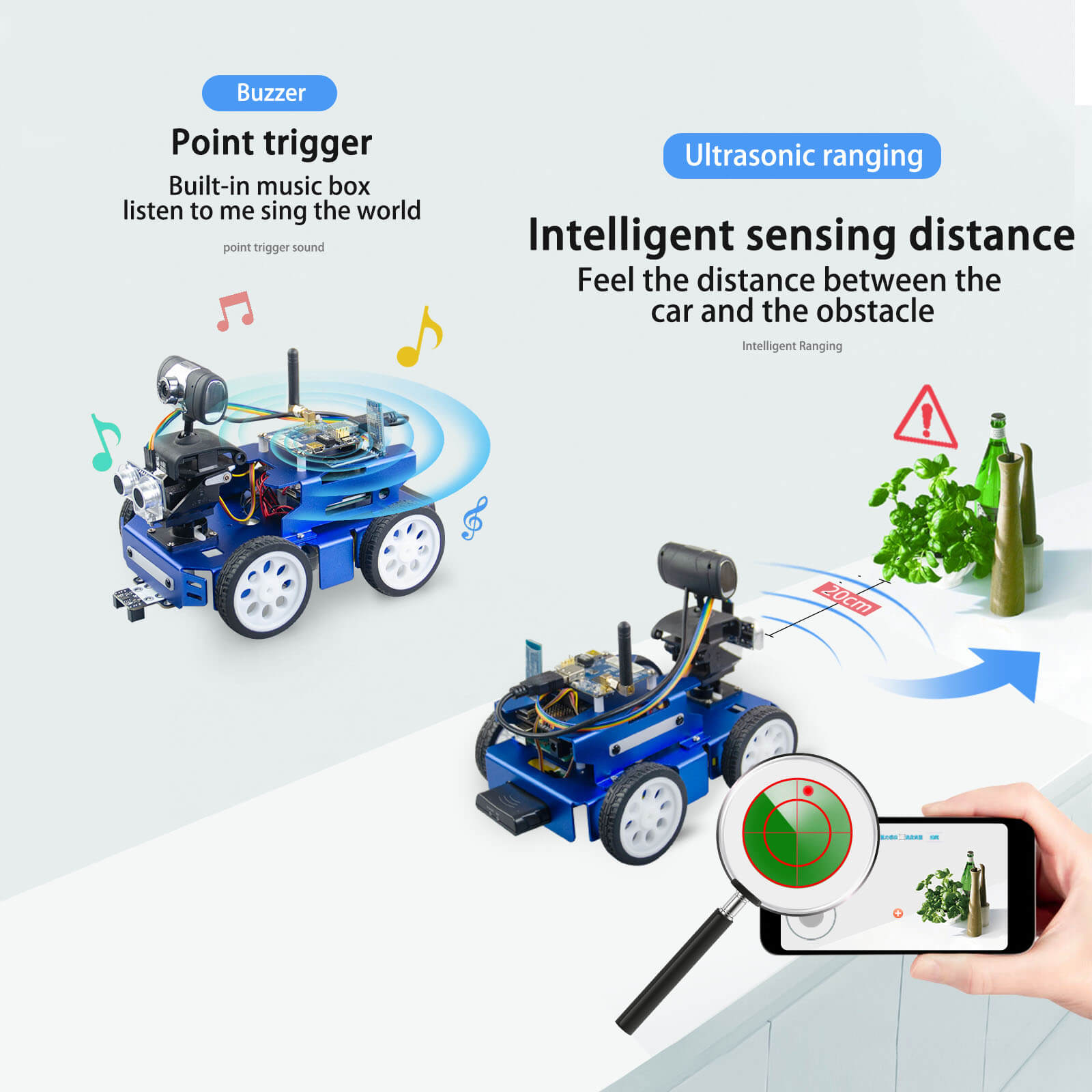

7、 Ultrasonic distance measurement
8、Infrared line inspection function

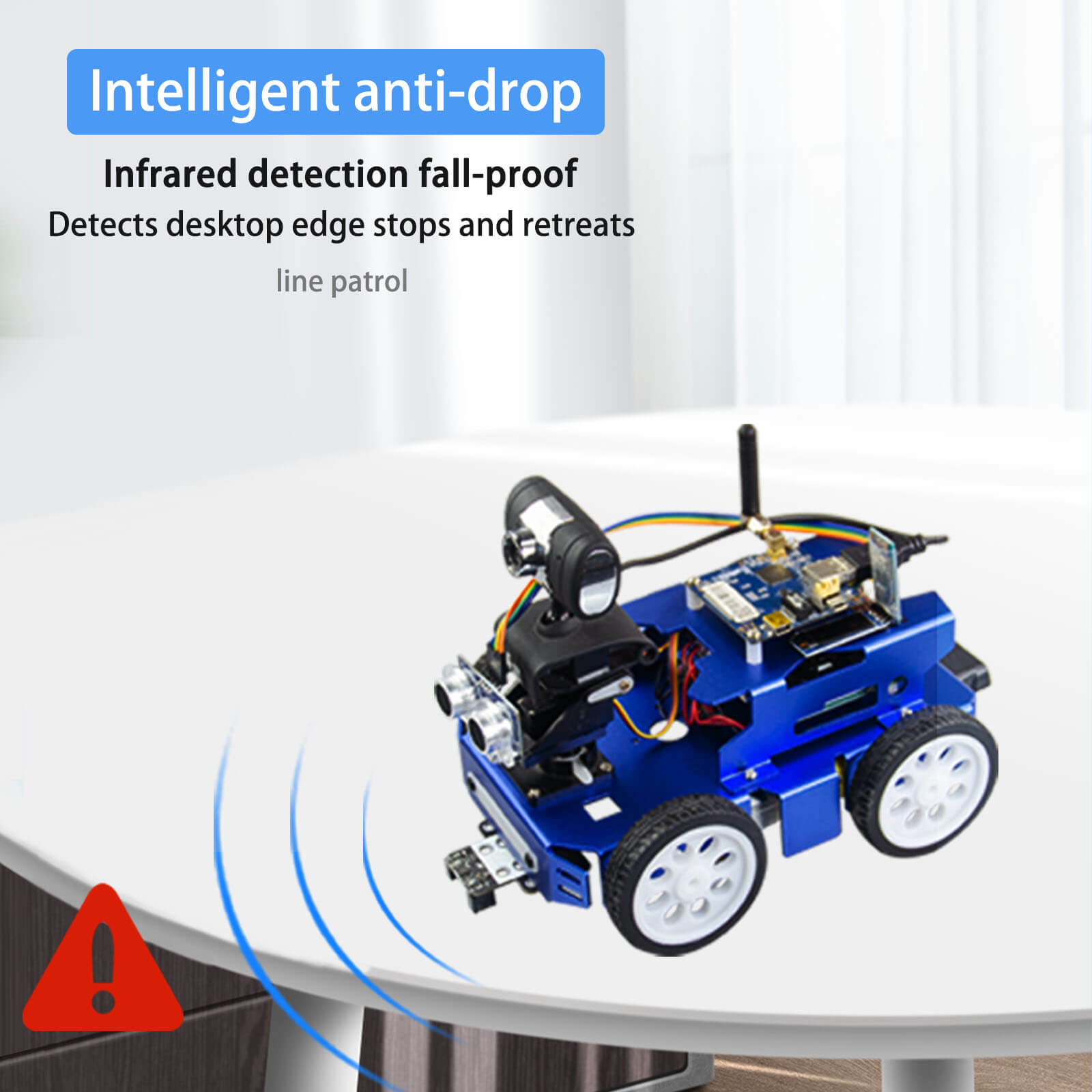

9、Infrared anti-drop function
10、Distance voltage display function
11、 Real-time mode display function
12、 Headlight function
13、Turn signal function
14、Voltage indication
15、Horn function
16、Built-in music
17、PS2 handle control function
18、Bluetooth control
19、Gesture recognition
20、 Object tracking
21、Object recognition
22、visual obstacle avoidance
23、37 kinds of sensor expansion experiment
Packing List
1*DSX Chassis
1*DSX Roof
4* Rubber wheels
4* White wheels
1* 0.91inch OLED screen
2 * Bunting
1*Ultrasonic sensor
1* PS2 Receiver
1* PS2 Adapter
1* metal bag
1* Phillips Screwdriver
2* 9g steering gear
1* Chargers
4* TT motor
1* Battery tray
1 set* Three-way line of defense
4* Dupont line
2t* The 6p line of defense
1* Line-tracking sensor
1* Robolink 4.0
1* Three-in-one power panel
1* Bluetooth
1*Batteries
1* SD card & card reader
1* PS2 controller
1* Cameras
1 set *head Nylon
1* 2 DB antenna
1* RJ25
1* Raspberry Pi motherboard
Notice：Because some countries do not support battery transportation, so we will provide a battery box + charger to instead batteries, and please purchase the batteries on your local country.
