Overview of Jetson Nano Ros radar robot car with 7" touch screen

Posted by XiaoR GEEKTechnology Co.,Ltd on

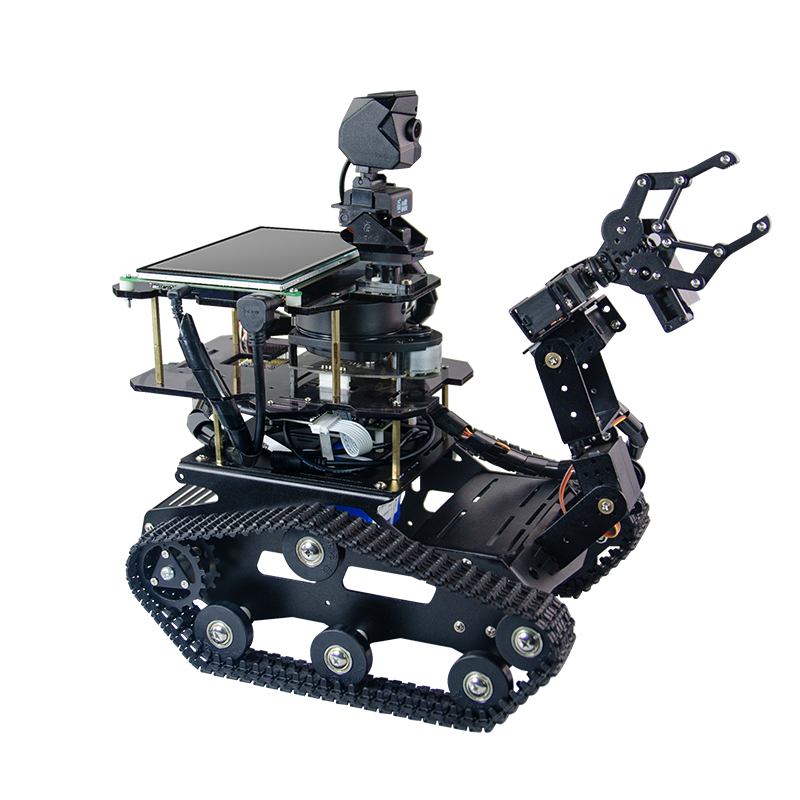

Jetson Nano Ros Slam Radar Robot Car with 7" touch screen

Features Description:

    • Color recognition;
    • Autopilot;
    • Mobile tracking;
    • Visual obstacle avoidance;
    • Lidar building map;
    • Automatic obstacle avoidance for indoor positioning;
    • 4-DOF mechanical arm;
    • Path planning of lidar;
    • Camera visual inspection line;
    • ROS mileage feedback


Product parameters:

    • programming software:Python、C++
    • Carbody size:length 310mm*width 240mm*height 360mm
    • ROS version: ROS Melodic
    • Radar: Rplidar A1
    • Network card: intel8625
    • Weight:about 4kg
    • Robotic arm:Anti jamming four degree of freedom mechanical arm
    • Length:310mm (Overall length of claw when closed)
    • Battery:8400mAh Lithium battery with charging protection
    • camera :  1080 HD camera
    • Voltage display:window
    • Electric machinery:DC brush motor (with 360 line AB code)
    • Motor torque:Single 3.5N.m

    • Maximum grab weight: 50g

    • Maximum claw opening and closing:50mm

    • IMU:Nine axis gyroscope sensor
    • Display Screen: 7" 1080P HD touch screen(Capacitive touch screen)
